Craft Brewing Equipment

Craft Brewhouse

Process Partners offer high quality modular brewhouse designs for craft brewing customers.  We can supply individual vessels or pre-assembled systems including Mash Tun, Lauter Tun, Wort Kettle, Whirlpool.  The systems include piping, valves, pumps, plate heat exchanger, platform and ancillary equipment. We offer 2, 3, 4 and 5 vessel modular craft designs.

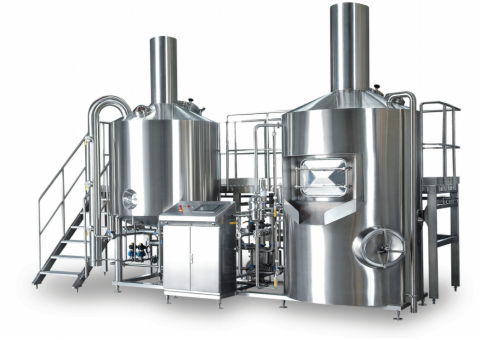

Our 2-vessel brewhouse can be designed in both North American style and European style configurations.  This modular brewhouse will be fully tested before delivery, including process control system by Siemens  and high-quality european valves and fittings.  We allow brewers to create low-cost, functional products on an efficient brewing plant

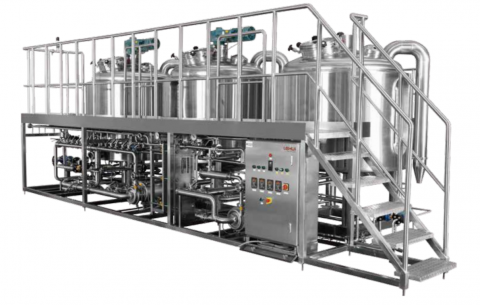

The 3-vessel brewhouse includes three main vessels (Mash Tun, Lauter Tun, Wort Kettle/Whirlpool) including piping, valves, pumps, plate heat exchanger, platform etc. These are pre-assembled as one module in our factory. Its convenient design reduces transportation cost, as well as installation of equipment on site.

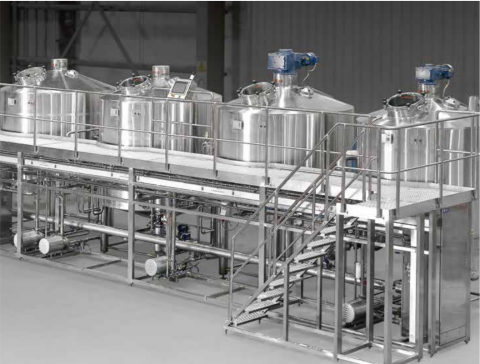

The 4-vessel brewhouse has modular designs for  20hl, 30hl, 50hl, 80hl, 100hl per brews, with max 7 batches per day.  Four main vessels (Mash Tun, Lauter Tun, Wort Kettle, Whirlpool) include piping, valves, pumps, plate heat  exchanger, platform,etc.  These are pre-assembled as one module at our factory

Craft Brewing Vessels

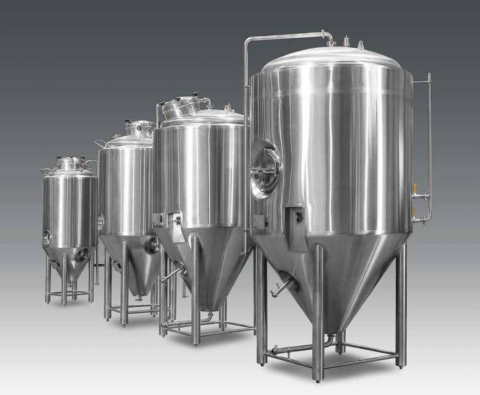

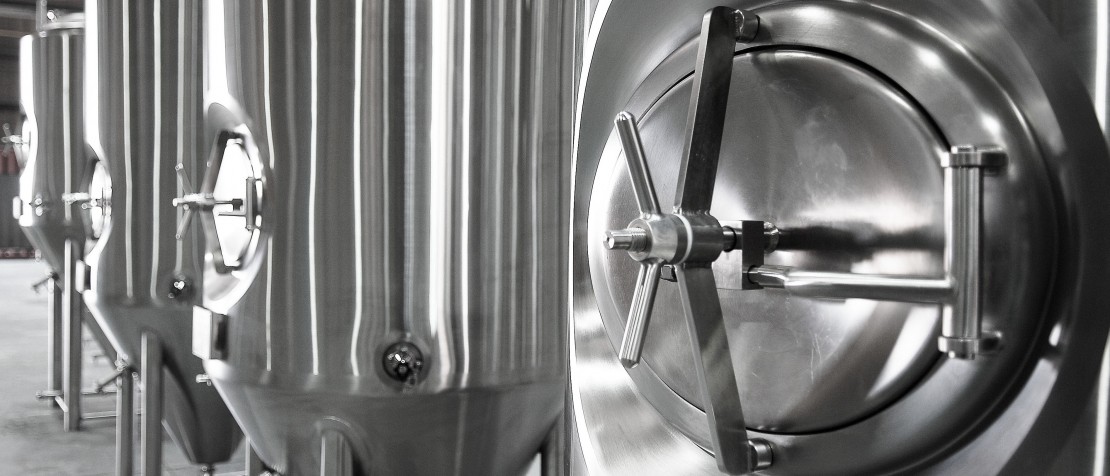

We are able to supply fermentation tanks and brite beer tanks that meet international standards for pressure vessels including ASME, PED, AS1210  etc. All tanks can be designed and manufactured according to our customer’s specific requirements.

Typical specifications include:

  • 60° & 70° bottom cone angle for fermenters
  • Dished bottom for Brite beer tanks
  • 25% head space for Fermenters; 10% for Brite Beer tanks.
  • Multiple zone cooling jacket.
  • Shell and Cladding: 304 stainless steel.
  • 100mm Polyurethane insulation.
  • Butterfly valve, sample valve,  pressure safety valve and anti-vacuum valve are optional.
  • Clamps and gaskets, port for pressure gauge.
  • Stainless steel legs with adjusted footpads.
  • Side or top manway.
  • CIP pipeline with spray ball
  • Steel packing supports for shipment.

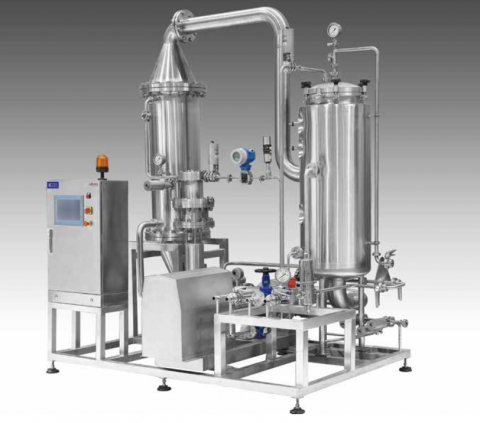

Cross Flow Filtration

Craft brewing scale ceramic membrane cross flow filtration. For quality filtered beer with less oxygen and low turbidity.  Maintains the original beer flavor. Modular design for easy scale up. Low operation and maintenance costs.
